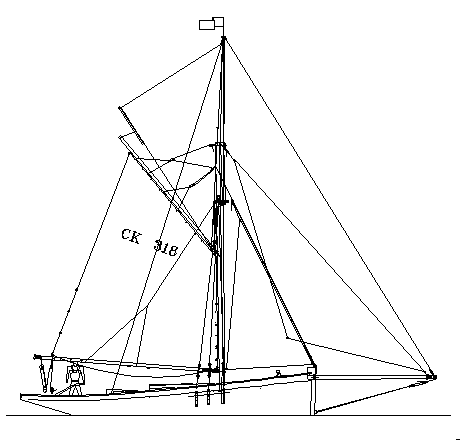

ELEVATION showing parts of a smack
Translate this site
Hover your mouse over parts of the drawing, hesitate a while, and see a description pop up----



This may not work in some browsers that do not support image mapping. Sorry about that, but if I put all the notes on the drawing at this scale you wouldn't see anything but words!

DXF vector line drawings of a 38' Stone smack are available for a free download here.




gaff span gaff span , wire or rope LWL or load water line hull 40mm thick pine counter modern coachroof over original fish hatch bulwarks starboard bow stem No shelter for helmsman standing on deck 2:1 bobstay tackle Cranse iron connects supports at end of bowsprit topmast forestay sometimes carries jib tops'l in light airs bowsprit traveller carries out tack of jib Channels spread the shrouds and deadeyes clear of the bulwark rail Bobstay - 10mm chain Bowsprit - solid pine - 7.3m x 190mm dia. Gammon iron on side of stem guides running bowsprit. Working Fores'l - 146 sq.ft. - tanned flax bitts support heel of bowsprit 3 pairs of shrouds, 10mm wire - Deadeyes with 12mm rope lanyards for tensioning shrouds. 3 reefs in mainsail Mainsheet, 6:1 purchase, 30m of 16mm rope. Boom - solid pine - 8.5m x 160mm dia. Topping lift and lazy jacks - 10mm rope Topping lift and lazy jacks - 10mm rope Mainsail - 516 sq.ft. - tanned flax Mainsail - 516 sq.ft. - tanned flax Mainsail - 516 sq.ft. - tanned flax Running Backstay - 6mm wire with 3:1 tackle. Running Backstay - 6mm wire with 3:1 tackle. Running Backstay - 6mm wire with 3:1 tackle. Fishing Number - CK is Colchester Registry. Fishing Number - CK is Colchester Registry. Mast - solid pine - 13m x 240mm dia. Keel stepped. Mast - solid pine - 13m x 240mm dia. Keel stepped. No.1 Jib set flying, 269 sq.ft., white flax Hounds, Crosstrees and fid securing heel of topmast Spectacles support sliding topmast. Peak halyard - 4:1 + hardener tackle Peak halyard - 4:1 + hardener tackle Gaff - solid pine - 7m x 135mm dia. Tops'l club - 1.8m x 50mm Tops'l - 232 sq.ft. - white terylene Topmast - solid pine - 9m x 150mm dia. Bob or burgee
Sail Area Calculator .....................................[with thanks to the www Interactive Mathmatics Server at wims.unice.fr]
the sail area with three sides: in feet or metres [overwrite the example]
To solve the area of a triangle given just the sides is a bit long winded by hand. This little calculator will do it for you.
Just enter the luff, leach and foot lengths [in any order in metres or feet and inches entered as decimals of a foot - see below] and a window will pop up with the area in sq.m. or sq.ft. , value of the corner angles and more info besides.
Seperate the lengths entered with a comma as shown in the example.
For a gaff main, measure the four sides and a diagonal and treat the sail as two triangles each side of the diagonal
then add the two results together.
1"=0.08' - 2"=0.17' - 3"=0.25' - 4"=0.33' - 5"=0.42' - 6"=0.5' - 7"=0.58' - 8"=0.67' - 9"=0.75' - 10"=0.83' - 11"=0.92 feet
